What is a Z Bucket Elevator?

What is a Z Bucket Elevator?

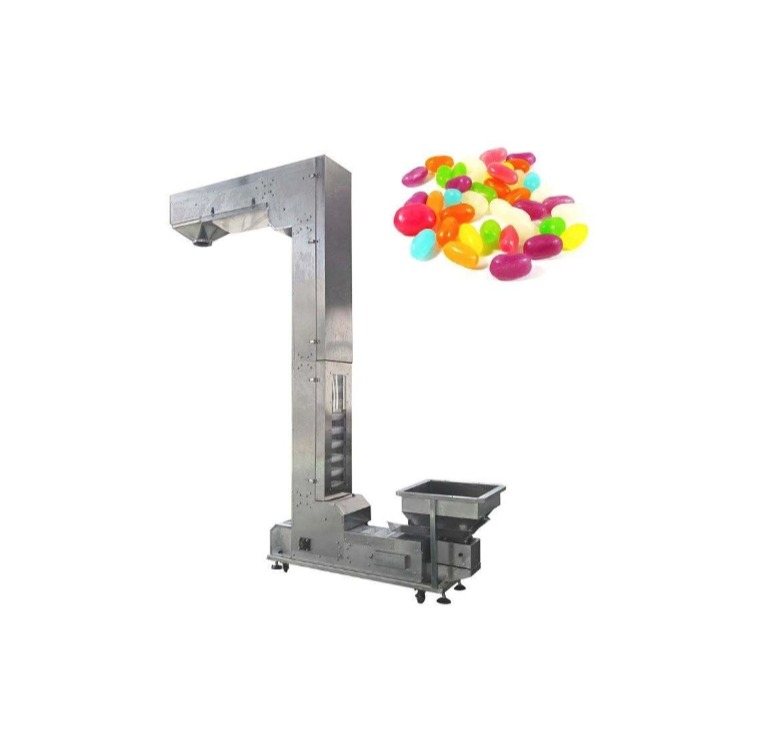

Z Bucket Conveyor is a kind of efficient and reliable conveying equipment: it is widely used in various industrial fields. It adopts Z-type arrangement, which has the advantages of long conveying distance, large conveying capacity, stable operation, etc. The main structure of Z Type Belt Conveyor includes conveyor belt, driving device, roller, bracket and tensioning device, etc. The conveyor belt is driven by the driving device and runs along the Z-track to realize the continuous conveying of materials. The conveyor belt, driven by the driving device, runs along the Z trajectory to realize the continuous conveying of materials. The roller and the support roller are used to support the conveyor belt to ensure its normal operation. The bracket is used to fix the whole Z Type Conveyor Belt to keep its stability and reliability. The tensioning device is used to adjust the tension of the conveyor belt to ensure its normal operation.

What are the advantages of a Z Type Bucket Conveyor?

Strong vertical conveying capacity: Z Bucket Elevator is suitable for conveying materials in vertical and inclined direction, has strong vertical conveying capacity, and can meet the needs of conveying at different heights.

Simple and stable structure: Z Bucket Conveyor has a relatively simple structure, high stability, easy to install and maintain, reducing the maintenance cost of the equipment.

Strong adaptability: Z Type Belt Conveyor is suitable for conveying granular, lumpy or powdery materials, widely used in grain processing, metallurgy, chemical industry, building materials and other industries.

High conveying efficiency: Z Type Conveyor Belt can convey materials continuously and efficiently, which improves the production efficiency and reduces the cost of labor and time.

Smooth operation: Z Type Bucket Conveyor transmission system is reasonably designed, smooth operation and low noise, which is conducive to improving the comfort of the production environment.

Less material loss: due to the design of the bucket, Z Bucket Elevator can effectively reduce material loss and leakage, to ensure the cleanliness and tidiness of the production process.

High reliability: Z Bucket Conveyor is made of wear-resistant material, which has high durability and reliability, and can run stably for a long time.

What is the structure of a Z Type Belt Conveyor?

The main structure of Z Type Conveyor Belt includes conveyor belt, driving device, roller, bracket, tensioning device and other parts. The conveyor belt, driven by the driving device, runs along the Z-shaped track to realize the continuous conveying of materials. The roller and the support roller are used to support the conveyor belt to ensure its normal operation. The bracket is used to fix the whole conveyor to keep its stability and reliability. The tensioning device is used to adjust the tension of the conveyor belt to ensure its normal operation.

How does a Z-conveyor work?

Bucket chain or belt drive: Z Type Bucket Conveyor usually consists of bucket chain or belt, bucket fixed on the chain or belt. When the chain or belt is running, the bucket moves with it.

Lifting materials: In the process of running, the bucket chain or belt drives the bucket to rise, and the bucket adsorbs the materials in the process of rising, and then lifts the materials to the required height.

Unloading material: When the bucket reaches the top, the material will be unloaded to the designated position, and can be released through the deflector or discharge port.

Gravity Drop: After unloading the material, the bucket chain or belt will drop and the bucket returns to the starting position, ready for the next round of lifting.

Cyclic operation: Z Bucket Elevator realizes continuous lifting and conveying of materials through continuous cyclic operation.
